Le TM1637
Le TM1637 permet de commander 8 digits
Transmission des données série du TM1637
Par défaut le délai entre chaque bit est de 20μs
Pour afficher les segments : TM1637.inc
.equ TM1637_CLK=PB0 ;PB0 TM1637 CLK
.equ TM1637_DIO=PB1 ;PB1 TM1637 DIO
.equ TM1637_Delay=20 ;20us
#define TM1637_COMM1 0x40
#define TM1637_COMM2 0xC0
#define TM1637_COMM3 0x80
;

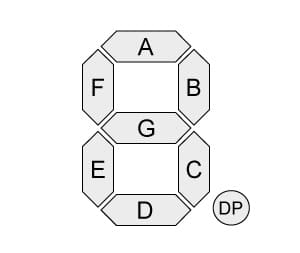

; A
; ---
; F | | B
; -G-
; E | | C
; ---
; D
; XGFEDCBA
#define SEG_A 0b00000001
#define SEG_B 0b00000010
#define SEG_C 0b00000100
#define SEG_D 0b00001000
#define SEG_E 0b00010000
#define SEG_F 0b00100000
#define SEG_G 0b01000000
#define SEG_DP 0b10000000
#define minus 0b01000000
#define deg SEG_A|SEG_B|SEG_F|SEG_G
TM1637_parametre:
;digitToSegment: ;0123456789AbCdEF-° segments XGFEDCBA
.db 0b00111111,0b00000110,0b01011011,0b01001111,0b01100110,0b01101101,0b01111101,0b00000111
.db 0b01111111,0b01101111,0b01110111,0b01111100,0b00111001,0b01011110,0b01111001,0b01110001
;digits:
.db 0,1,2,3
;segment:
.db SEG_A|SEG_E|SEG_F|SEG_D,SEG_A|SEG_D,SEG_A|SEG_D,SEG_A|SEG_B|SEG_C|SEG_D
;brightness,pos:
.db 0x0f,0
TM1637_finparametre:
TM1637_Setup:
ldi XL,low(TM1637_paramRam)
clr XH
ldi ZL,low(TM1637_parametre<<1)
ldi ZH,high(TM1637_parametre<<1)
rjmp recup_param
bcl_recup:
lpm regA,Z+ ; [0x0060]=[param]
st X+,regA ;
recup_param:
cpi ZL,(TM1637_finparametre)<<1
brne bcl_recup
;Set the pin direction and default value.
;Both pins are set as inputs, allowing the pull-up resistors to pull them up
cbi DDRB,TM1637_CLK ;INPUT
cbi DDRB,TM1637_DIO ;INPUT
cbi PORTB,TM1637_CLK ;LOW
cbi PORTB,TM1637_DIO ;LOW
ret
TM1637_start:
sbi DDRB,TM1637_DIO ;OUTPUT
rcall delay
ret
TM1637_stop:
sbi DDRB,TM1637_DIO ;OUTPUT
rcall delay
cbi DDRB,TM1637_CLK ;INPUT
rcall delay
cbi DDRB,TM1637_DIO ;INPUT
rcall delay
ret
TM1637_writeByte:
;Write byte in RegA
push regB
ldi regB,8 ;8 data bits, no parity
SendBits:
sbi DDRB,TM1637_CLK ;OUTPUT CLK to zero
rcall delay
lsr regA
brcc SendBits0 ; si carry=0 I2CSendBits0
cbi DDRB,TM1637_DIO ;INPUT to high
rjmp SendBits1
SendBits0:
sbi DDRB,TM1637_DIO ;OUTPUT to low
SendBits1:
rcall delay
cbi DDRB,TM1637_CLK ;INPUT CLK to high
rcall delay
dec regB
brne SendBits
;Wait for acknowledge
sbi DDRB,TM1637_CLK ;OUTPUT CLK to zero
cbi DDRB,TM1637_DIO ;INPUT
rcall delay
cbi DDRB,TM1637_CLK ;INPUT CLK to high
rcall delay
sbis DDRB,TM1637_DIO ;test ACK
sbi DDRB,TM1637_DIO ;OUTPUT
rcall delay
sbi DDRB,TM1637_CLK ;OUTPUT CLK to zero
rcall delay
pop regB
ret
delay:
ldi XH, HIGH(C4PUS*TM1637_Delay)
ldi XL, LOW(C4PUS*TM1637_Delay)
rcall Wait4xCycles ;100us
ret
;______________________________________________
;TM1637_encodeDigits
;Encode Digits dans Segments
;Input : None
;Output: Display
;______________________________________________
TM1637_encodeDigits:
push ZH
push ZL
push YH
push YL
push XH
push XL
;rcall TM1637_Clear
ldi ZL,low(digits)
ldi ZH,high(digits)
ldi XL,low(segment)
ldi XH,high(segment)
ldi regB,4
ldi ZL,low(digits)
ldi ZH,high(digits)
blc_encode:
ld regA,Z+
ldi YL,low(digitToSegment)
ldi YH,high(digitToSegment)
add YL,regA
ld regA,Y
st X+,regA
dec regB
brne blc_encode
pop XL
pop XH
pop YL
pop YH
pop ZL
pop ZH
ret
;______________________________________________
;TM1637_leading_zero:
;______________________________________________
TM1637_leading_zero:
ldi XL,low(segment)
ldi XH,high(segment)
leading_zero:
ld regA,X+
cpi regA,0b00111111 ;segment pour 0
brne fin_leading_zero
dec XL
st X,zero
inc XL
rjmp leading_zero
fin_leading_zero:
ret
;______________________________________________
;TM1637_SetSegment
;Display all segment
;______________________________________________
TM1637_SetSegment:
push ZH
push ZL
;Write COMM1
rcall TM1637_start
ldi regA,TM1637_COMM1
rcall TM1637_writeByte
rcall TM1637_stop
;Write COMM2 + first digit address
rcall TM1637_start
lds regA,pos
andi regA,0x03
ori regA,TM1637_COMM2;
rcall TM1637_writeByte
ldi ZL,segment
clr ZH
ldi regB,4
fourchar:
ld regA,Z+
rcall TM1637_writeByte
dec regB
brne fourchar
rcall TM1637_stop
;Write COMM3 + brightness
rcall TM1637_start
lds regA,brightness
ori regA,TM1637_COMM3;
rcall TM1637_writeByte
rcall TM1637_stop
pop ZL
pop ZH
ret
Programme de test : Test.asm
; Matériel : ATtiny 85 20MHz 5V
; ATtiny85
; +-\/-+
; PB5 1|- -|8 Vcc
; dispo - PB3 2|- -|7 PB2 -
; dispo - PB4 3|- -|6 PB1 - TM1637_DIO
; GND 4|- -|5 PB0 - TM1637_CLK
; +----+
; TM1637.asm
;
; Created: 13/02/2020 18:22:18
; Author : samuel.dupre
;
#define F_CPU 20000000 ;20MHz
.cseg
.include "tn85def.inc"
.def zero = r10
.def temp =r9
.def regA = R16 ; GENERAL PURPOSE ACCUMULATOR
.def DATA = R18 ; Data pulseLengthInTicks
.def regB = R21 ; GENERAL PURPOSE ACCUMULATOR
.def regC = R20 ; GENERAL PURPOSE ACCUMULATOR
.def VH =r25
.def VL =r24
.def WH =r23 ;min
.def WL =r22 ;sec
.org 0x0000
rjmp RESET_vect ; Reset Handler
reti ;External Interrupt 0
reti ;Pin change Interrupt Request 0
reti ;Timer/Counter1 Compare Match 1A
reti ;Timer/Counter1 Overflow
reti ;Timer/Counter0 Overflow
reti ;EEPROM Ready
reti ;
reti ;
reti ;
reti ;
reti ;
reti ;
reti ;
reti ;
.include "wait.inc"
.include "TM1637.inc"
.include "hex2dec.inc"
RESET_vect:
clr zero
ldi regA, LOW(RAMEND) ;Setup of stack pointer 0x15F t45/0x25F t85
out SPL, regA
ldi regA, HIGH(RAMEND)
out SPH, regA
ldi regA,0b10000000 ;Attention, ces 2 instructions sont importantes
;pour le changement de fréquence (sécurité AVR)
out CLKPR,regA
ldi regA,0b00000000 ;divise par 1 le clock RC de 20MHz, donc 20MHz
out CLKPR,regA
;Eteint le CAN
cbi ADCSRA, ADEN ;switch Analog to Digitalconverter OFF
rcall TM1637_Setup
rjmp test
loop:
rcall TM1637_SetSegment ;Affiche
ldi regA,2
rcall waitseconds
clr regA
sts digits,regA ;0
ldi regA,4
sts digits+1,regA ;4
dec regA
sts digits+2,regA ;3
dec regA
sts digits+3,regA ;2
rcall TM1637_encodeDigits ;0432
rcall TM1637_leading_zero ;_432
rcall TM1637_SetSegment ;Affiche
ldi regA,2
rcall waitseconds
ldi regA,minus ;-
sts segment,regA
rcall TM1637_SetSegment ;Affiche -432
ldi regA,2
rcall waitseconds
ldi regA,1
sts digits,regA ;1
sts digits+1,regA ;1
sts digits+2,regA ;3
ldi regA,8
sts digits+3,regA ;8
rcall TM1637_encodeDigits ;1138
lds regA,segment+1
ori regA,SEG_DP
sts segment+1,regA
rcall TM1637_SetSegment ;11:38
ldi regA,1
rcall waitseconds
lds regA,segment+1
andi regA,~SEG_DP
sts segment+1,regA
rcall TM1637_SetSegment ;11:38
ldi regA,1
rcall waitseconds
lds regA,segment+1
ori regA,SEG_DP
sts segment+1,regA
rcall TM1637_SetSegment ;11:38
ldi regA,1
rcall waitseconds
lds regA,segment+1
andi regA,~SEG_DP
sts segment+1,regA
rcall TM1637_SetSegment ;11:38
ldi regA,1
rcall waitseconds
lds regA,segment+1
ori regA,SEG_DP
sts segment+1,regA
rcall TM1637_SetSegment ;11:38
ldi regA,1
rcall waitseconds
clr regA
sts digits,regA ;0
ldi regA,2
sts digits+1,regA ;2
ldi regA,8
sts digits+2,regA ;8
sts digits+3,regA ;0
rcall TM1637_encodeDigits
rcall TM1637_leading_zero ;_30°
ldi regA,deg
sts segment+3,regA
rcall TM1637_SetSegment ;Affiche
ldi regA,2
rcall waitseconds
clr regA
sts digits,regA ;0
ldi regA,1
sts digits+1,regA ;1
ldi regA,4
sts digits+2,regA ;4
sts digits+3,regA ;0
rcall TM1637_encodeDigits
ldi regA,minus ;-140
sts segment,regA
ldi regA,deg
sts segment+3,regA ;-14°
rcall TM1637_SetSegment ;Affiche
ldi regA,2
rcall waitseconds
ldi regA,0x0A
sts digits,regA ;A
ldi regA,0x0B
sts digits+1,regA ;B
ldi regA,0x0C
sts digits+2,regA ;C
ldi regA,0x0F
sts digits+3,regA ;F
rcall TM1637_encodeDigits
rcall TM1637_SetSegment ;Affiche AbCF
ldi regA,2
rcall waitseconds
;Affiche rapidement de 9999 à 0
test:
ldi WH,high(9999)
ldi WL,low(9999)
bcl_9999:
rcall BIN2DCB16
rcall TM1637_encodeDigits
rcall TM1637_SetSegment ;Affiche AbCF
ldi regA,20
rcall WaitMiliseconds
subi WL, 1
sbc WH, zero
brne bcl_9999
rjmp loop
.dseg
.org 0x60
TM1637_paramRam:
digitToSegment:
.byte 16
digits:
.byte 4
segment:
.byte 4
brightness:
.byte 1
pos:
.byte 1
.eseg
.db "sammy76.free.fr TM1637 "
conversion hexa 16 bits (jusqu'a 9999) en décimal hex2dec.inc"
;16-bit unsigned binary integer to 8-bit BCD in AVR ASM for ATtiny
;9999-0
;Entrée : WH:WL
BIN2DCB16:
push WH
push WL
ldi ZL,low(digits)
ldi ZH,high(digits)
ldi regA, -1
_bib2: inc regA
subi WL, low(1000)
sbci WH, high(1000)
brcc _bib2
st Z+,regA
ldi regA, 10
_bib3: dec regA
subi WL, low(-100)
sbci WH, high(-100)
brcs _bib3
st Z+,regA
ldi regA, -1
_bib4: inc regA
subi WL, 10
brcc _bib4
st Z+,regA
subi WL, -10
st Z,WL
pop WL
pop WH
ret
